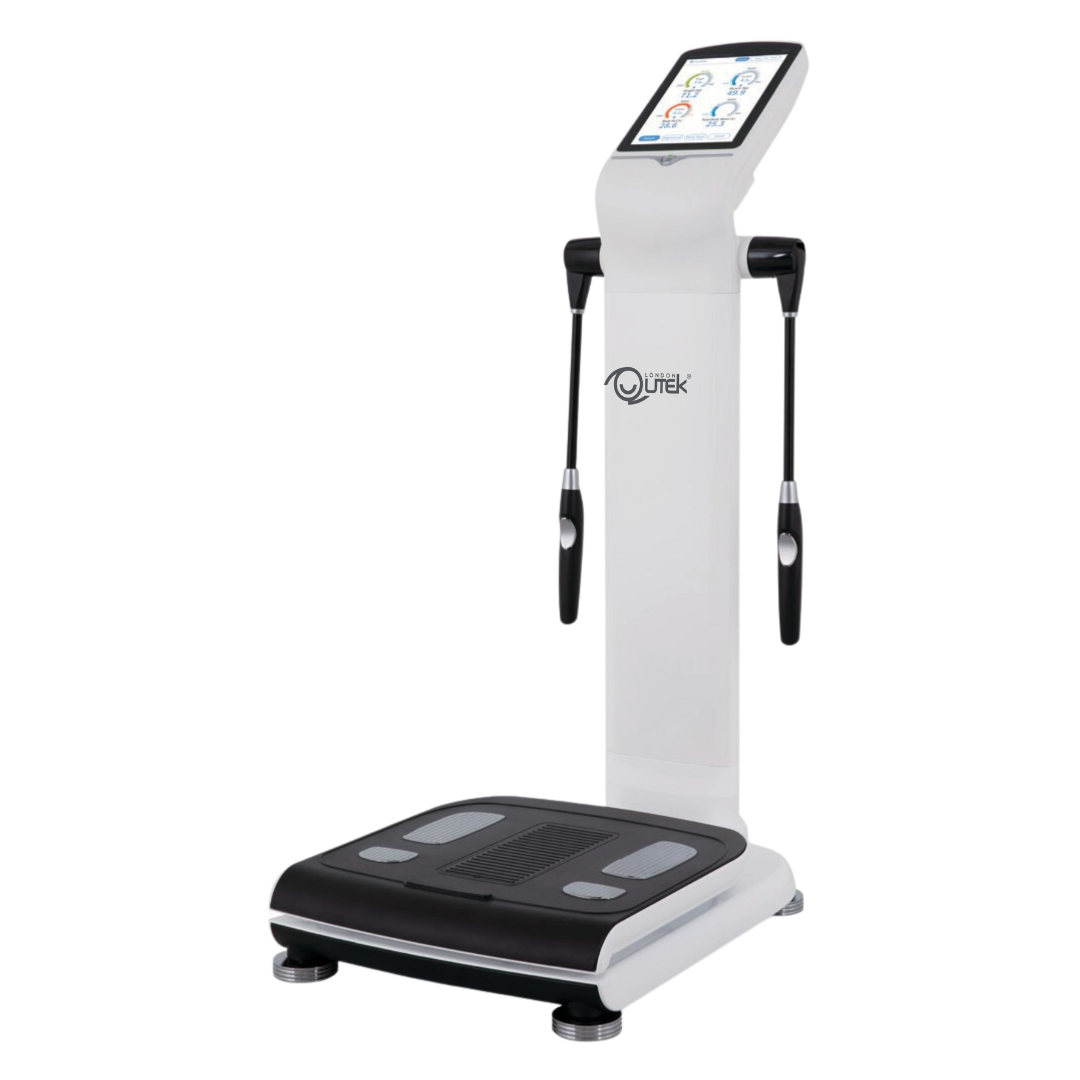

The perfect health companion
High Resolution 10.4 inch Color LCD Touch Screen
All operations can be conveniently performed on the wide touch screen.
Wide Ranged Multi-Frequencies: 5,10,50,100,500,1000kHz
With a wide rage of frequencies, comprehensive water analysis such as intracellular and extracellular water is available.
Age Specific Assessment
It shows the percentile curve of BMI, SMI and FMI with respect to the age and gender of user. The percentile rank is the value indicating the position of user within the same age group relatively. The predicted body composition value after 10 years is the value predicted on the assumption that the current condition is kept.
Whole Body Phase Angle
Phase angle indicates the ratio of reactance to resistance and is proportional to reactance, so it serves as an index for health condition of cell membrane and cell in theory.
Previous Measurement Result Display
You can check the trend of body composition through previous measurement result display.
Comprehensive Water Analysis
Comprehensive body water measurement such as body water, extracellular water, intracellular water, and extracellular water ratio is possible, and changes in body water can be checked at the same time.
Muscle & Body Cell Mass Analysis
Muscle mass may be overestimated in patients with unbalanced intracellular/extracellular water. Therefore it is recommended to use body cell mass in addition to muscle mass for accurate analysis.
Intake & Consumed Calories
BMR, energy consumption can be checked and you can refer to exercise intensity, calorie consumption, duration for target body fat mass which is calculated based on the standard body fat ratio.
Inch Perfect and Up to Date Body Composition Analysis Algorithm
Clinical trials of Golden Standards of Body Composition Analysis methods (DEXA, CT, and Isotope Dilution) were conducted in professional institutions to a wide range of demographics ranging from elderly to small children. The R2 value between the DEXA measurement and the body composition prediction equation was 0.984, indicating a high correlation.
Result Sheet: Easy to Understand Description
Analysis results can be easily understood through the intuitively designed result sheet with previous measurement results and predicted values.
User Friendly Design
Rotated Handle: The wide rotating radius of the handle and the hand electrode, which can be rotated to suit user’s posture, helps to test comfortably and accurately. -Blind Mode : User can hide fat and weight information from the display by simply pressing a “Blind” button on the key pad. It can be turned on/ off during measurement and will be written at the result paper all the time.
Electrode Type: Tetra-polar electrode method using 8 point electrodes
Measurement Method: Segmental measurement using multi frequency
Power:
• Adapter(BM060S12F, Manufacturer: BRIDGEPOWER CORP) Input: AC 100-240V, 50-60Hz, 1.5A(1.5-0.7A), Output: DC 12V. 5.0A
• Adapter(GSM60A12, Manufacturer: MEAN WELL ENTERPRISE CO., LTD) Input: AC 100-240V, 50/60Hz, 1.5A(1.4-0.7A), Output: DC 12V. 5.0A
Analysis Items (General Result):
• Body Composition Analysis: Total Body Water, Muscle Mass, Skeletal Muscle, Fat Mass, Fat Free Mass, Protein, Mineral, Osseous Mineral, Intracellular Water, Extracellular Water • Skeletal Muscle & Fat Analysis: Weight, Skeletal Muscle, Body Fat Assessment with previous result
• Obesity Analysis: BMI, Body Fat Percentage Assessment
• Segmental Analysis: Segmental Fat, Muscle, Body Water, Intracellular Water, Extracellular Water, Extracellular Water Ratio, Phase Angle and Body Balance Assessment
• Weight Control: Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
• Qutek Score, Extracellular Water Ratio, FMI, FFMI, SMI, Body Cell Mass, Segmental Impedance, Whole Body Phase Angle
Analysis Items (Children Result):
• Body Composition History: Weight, Skeletal Muscle, Body Fat
• Body Water Analysis: Total Body Water, Intracellular Water, Extracellular Water, Extracellular Water Ratio, Abdominal History
• Abdominal Obesity Analysis: Visceral Fat Area, Subcutaneous Fat Area, VSR, Waist Circumference, Abdominal Fat Ratio, WHtR, Changes of Abdomen • Muscle & Body Cell Mass Analysis
• Changes of Body Water: Weight, Total Body Water, Intracellular Water, Extracellular Water, Extracellular Water Ratio
• Body Type Analysis: Body Type Table, Body Type Graph Assessment with previous result, Segmental Circumference
• Exercise Nutrition Guide and Calorie Consumption
• Age-Specific Assessment: BMI, SMI, FMI, Estimated BMI/SMI,FMI after 10 years
• Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle
• Skeletal Muscle & Body Fat Analysis: Weight, Skeletal Muscle Mass, Body Fat Mass Assessment with previous result
• Segmental Analysis: Segmental Muscle, Fat and Body Balance Assessment
• Growth Chart: Height and Weight with 18 years old Predicted Value
• Body Composition History: Weight, Skeletal Muscle Mass, Body Fat, Height
• Weight Control: BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Mass Control
• Growth Evaluation: Muscle, Skeletal, Obesity Evaluation
• Qutek Score, Segmental Impedance
Measurement Frequency: 5, 10, 50, 100, 500, 1000kHz
Measurement Current: 200uArms
Measuring Range: 10 ~ 1000Ω
Measured Weight: 2.0~250.0 kg (Resolution 50g)
Range of Height: 60.0~220.0 cm
Input Interface: Touch Screen, Barcode reader
Addition Function: Data Backup and Restore to USB, and DB export to CSV file
Supported printer: Laser Printer that Qutek recommended
External Interface: RS232C(9Pin Serial) 2ea, USB(type A) 4ea, Mini-USB(type B) 1ea, LAN 1ea
Measurement Time: About 90 sec.
Age of Use: 3~99 years old
Display: 10.4inch(IPS, 768 x 1024 ), Color Full Touch LCD
Dimension: 472(W) x 888(L) x 1167(H)mm (±3mm)
Weight: About 24.0kg (±2kg)
Operating Environment: Temp 10~40°C, Humidity 30~75%, Air pressure 70~101.3 kPa
Storage Environment: Temp -10~60°C, Humidity 10~80%, Air pressure 50~101.3 kPa
Supporting Result Sheet: General Result, Children Result
Measurement Mode: Expert Test, Self Test, Classmate, Blind
